Highlight:
Industrial LPG Gas Leak Detector
, FIxed LPG Gas Leak Detector
, Wall Mount Ethylene Gas Detector

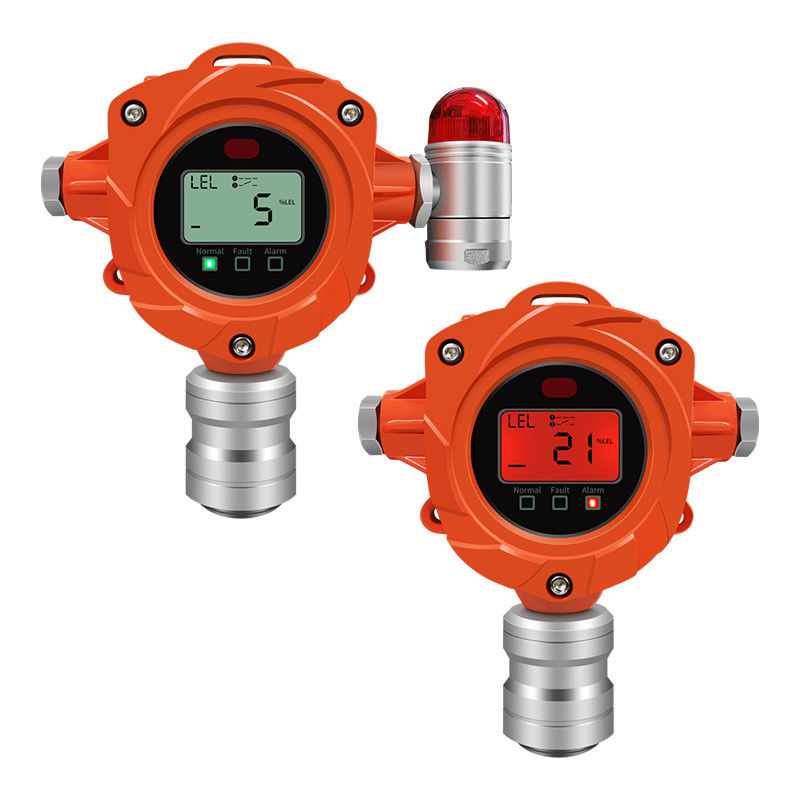

Industrial FIxed LPG Gas Leak Detector Wall Mount Ethylene Gas Detector
Industrial Wall Mount FIxed Lpg Gas Detector Fixed H2s Gas Alarm Detector Ethylen Gas Detector
Product Description:
The YA-D400 series point type gas detectors are utilized in various industries such as chemical, petroleum, metallurgy, liquefied gas stations, painting operations, gas transmission and distribution, and other indoor and outdoor environments that may be susceptible to danger from toxic and combustible gas leakage.
Our company takes pride in developing a practical and user-friendly gas detector that can be easily operated. The YA-D400 series can be conveniently paired with our gas alarm controller, YA-K series, to create an industrial gas alarm system to ensure the safety of the workplace.
The YA-D400 series gas detectors can be wall-mounted, and can also be installed using a tube, scaffolding, or ceiling type holder. Through the use of the controller, the single chip microcomputer can upload and process data from the gas detectors, completing the data display, output control, and other functions for the safety of your workplace.
Features:
Below are the features of the gas detector:
1. It displays the concentration of the detected gas.
2. The device has fault alarm, high and low alarm.
3. The field screen displays the readings with the help of backlight feature. The words are larger and clearer to read. When the device alarms, the backlight turns red for immediate attention.
4. The device supports infrared remote control input, which means no need to open cover operation, making it more convenient to operate.
5. It also supports three different sound and light outputs, corresponding to fault, low report, high report.
6. The device comes with a zero, calibrate, test function.
7. It outputs DC4-20mA standard signal.
8. The device supports RS485, two buses, LoRa, giving the user flexible communication options.
9. The device is operated with a high performance ARM microprocessor, making the operation easy.
10. It has three relay (250V 5A) output, which automatically opens the fan and solenoid valve.
11. The device can store 40 high and low alarm records.
12. The toxic gas detector can achieve mg/m³ and μmol/mol conversion for accurate measurements.
Technical Parameters:
| Product Name: |
YA-D400 Fixed Gas Alarm Detector |
| Size: |
205*209*84mm |
| Output Signal: |
4-20mA Current Signal, Corresponding To Full Scale |
| Measurement Unit: |
PPM, Mg/m3, Vol%, LEL%, PPHM, Ppb, Mg/l |
| Protection Level: |
IP67 |
| Sensor Type: |
Combustible: Catalytic Combustion Type; Toxic: Electrochemical Type (imported Sensor) |
| Working Type: |
Continuously Working |
| Detection Mode: |
Diffused |
| Precision: |
±5%FS (sensor Determined) |
| Weight: |
≤2kg |
This product is an industrial gas detector, stationary gas sensor, and fixed gas detector.
Applications:
The YA-D400 Fixed Gas Alarm Detector is suitable for use in a wide range of scenarios. It can be used in factories, chemical plants, oil refineries, and other industrial settings to detect gas leaks and prevent accidents. It can also be used in commercial buildings, hospitals, and other public places to detect carbon monoxide and other dangerous gases.
The YA-D400 Fixed Gas Alarm Detector is easy to install and use. It features a 4-20mA current signal output that corresponds to the full scale of the sensor, making it easy to monitor gas levels in real-time. It also has a high level of protection against dust, water, and other environmental factors, with an IP67 protection level.
Overall, the YAOAN YA-D400 Fixed Gas Alarm Detector is an essential tool for anyone working with or around potentially dangerous gases. Whether you are working in an industrial setting or simply want to ensure the safety of your home or workplace, this gas detector is an excellent choice. So, if you're looking for a reliable and effective fixed gas detector, look no further than the YAOAN YA-D400.
Support and Services:
Our Fixed Gas Detector product comes with comprehensive technical support and services to ensure proper installation, operation, and maintenance. Our team of experienced technicians can provide:
- Installation assistance and commissioning services
- Training on product operation and maintenance
- Calibration and testing services
- 24/7 technical support and troubleshooting
- Repair and replacement services
We are committed to providing our customers with the highest level of support and service to ensure the safety and reliability of our Fixed Gas Detector product.
FAQ:
Here are some frequently asked questions and answers about the YAOAN Fixed Gas Detector YA-D400:
Q: What types of gases can this detector detect?
A: The YA-D400 can detect a wide range of gases, including methane, propane, hydrogen, carbon monoxide, and many others.
Q: What is the detection range of the YA-D400?
A: The detection range of this gas detector is 0-100% LEL (Lower Explosive Limit) or 0-100% VOL (Volume Percentage).
Q: What is the response time of the YA-D400?
A: The response time of this gas detector is less than 30 seconds.
Q: Where is the YA-D400 manufactured?
A: The YA-D400 is manufactured in Shandong, China.
Q: What is the warranty period for the YA-D400?
A: Please refer to the warranty information provided by the manufacturer for details on the warranty period and terms.
